| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | B-RT |
| Certification: | ISO/TUV |
| Model Number: | n |
| Minimum Order Quantity: | 2 pieces |
| Price: | $39.00-55 per pieces |
| Packaging Details: | Cartons/Wooden cases |
| Delivery Time: | 3-25days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 400 Piece/Pieces per Week |
| Product Name: | Needle Roller Brush | Bristle Material: | Stainless Steel Wire/Customization |
|---|---|---|---|
| Customized Support: | OEM, ODM | Bristle Length: | Customization |
| Size: | Customization | Length: | Customization |
| Sample: | Available | MOQ: | 2pieces |
| Application: | Textile Machinery Spare Parts | Feature: | Wear Resisting |
| Package: | Carton/wood Box | Delivery Time: | 3-25days |
| Highlight: | Leather Fabric Punching Needle Roller Brush,Customizable Needle Roller Brush,Perforation Needle Roller Brush |
||

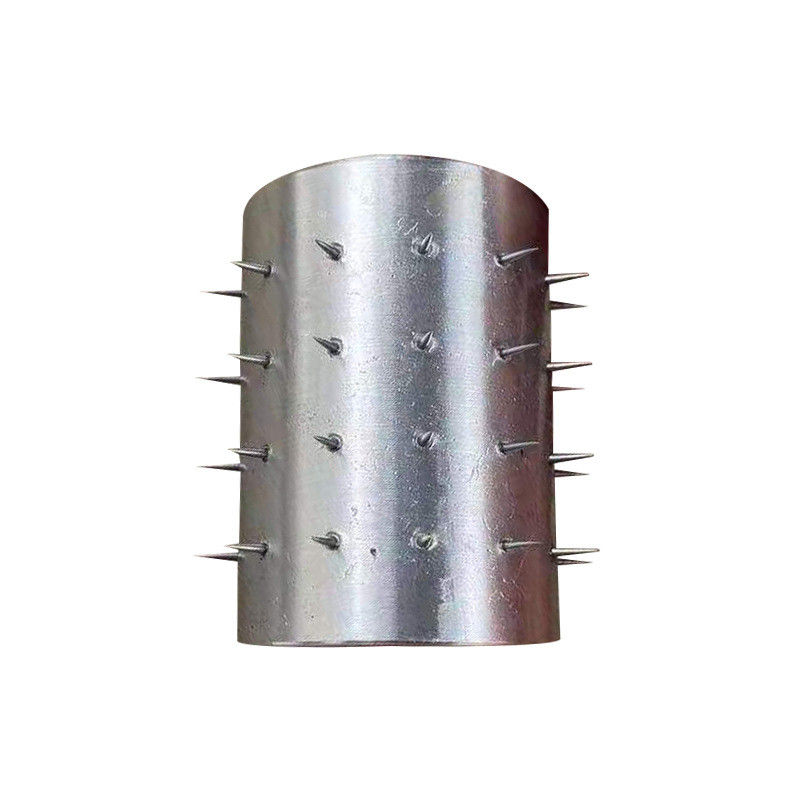

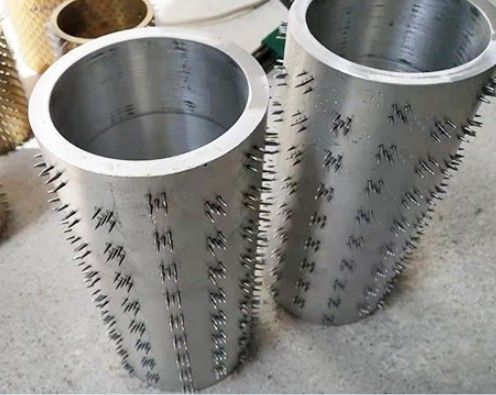

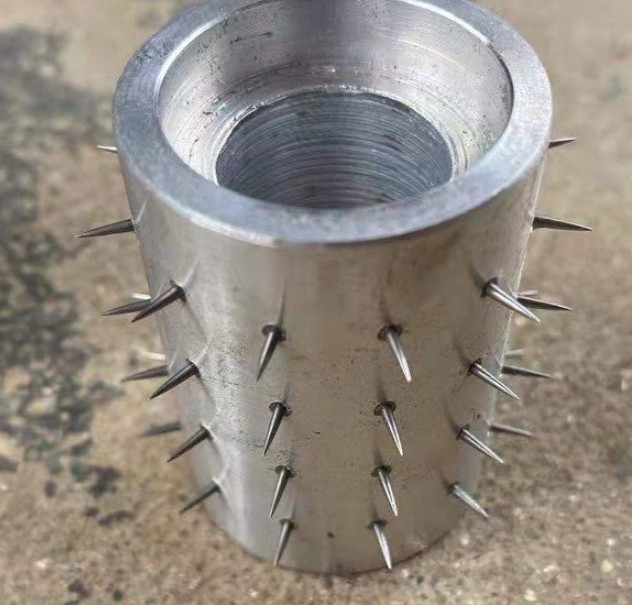

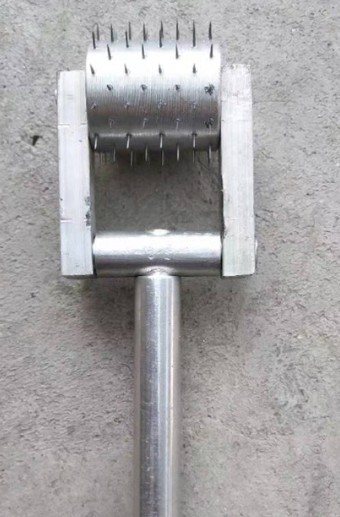

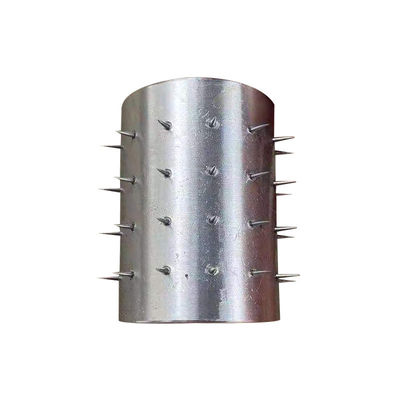

Needle roller brush
1.The main function of the needle roller Q is to control and comb the fibers. The needle roller is mounted in the draft zone and has a steel needle planted on the surface to prevent the fiber from prematurely changing to the front roller speed and to promote better straightening of the fiber pulled out by the front clamp .
2. The needle roller punctures the fiber layer through the steel needle to comb and loosen the fiber bundle. The steel needle changes from fine to coarse, the action force changes from weak to strong, the action force is moderate and meticulous, and it is not easy to damage or cut the fiber
3. The working principle of the needle roller is that the steel needle is inserted into the fiber layer for combing, the steel needle is changed from fine to coarse, the action force is changed from weak to strong, the action is moderate and meticulous, and it is not easy to damage or cut the fiber. This carding method can better control the straightening and combing of the fibers and reduce fiber damage 3. Application of needle roller in textile industry Needle roller is widely used in the textile industry for spinning and woolen spinning frame without twist, carded spinning frame and spinning frame of silk spinning and axis silk spinning. It can effectively control and comb the fiber, improve the straightness and uniformity of the fiber, and thus improve the quality of the yarn
We can customize for you according to your needs, the size and material you need, will judge your production of stainless steel wire roller brush according to your use scenario.
Characteristic
• Flexible • Customizable • Durable
Details
| Application | Plastic Films,Aluminium Foils,Leathers,Artifical Leathers,Textiles,Non-wovens,etc |
| Needle Diameter | The minimum diameter is 0.25 mm |
| Angle of Inclination | 90 ,85,80,75,70,65,60,55,50,45 |
| Needle Density |
|
| Drill Depth | max 8 mm |
| Hole Pattern | Almost any pattern is possible |
| Diameter of Roller | 10-350mm |
| Height of Roller | max 300 mm |
| Roll Material | Bronze,Brass,Alunibium,Steel |
| Concentricity | 0.07mm |
Company introduction
ANHUI RITONG BRUSH-MAKING CO.,,LTD
Anhui ritong brush-making co.,LTD.Is located in qianshan county.,anqing city,anhui province.established in 2007,covers an area of 8 acres,plant covers an area of 5325.6 square meters,mainly engaged in industrial brushr&d/processing and sales,the main products are strip brush/cylindrical brush,brush roller/plate brush.Compary in2015 to develop foreign trade business,so far,the products have been exported to Africa/Latin America/southeastAsia/Europe/the United States,and is unanimously recognized the international partners.Since its establishment,the company has participated in the establishment of the local standard of industrial woolbrush industry in China,passed the ISO9001 certification,won the title of provincial/city famous brand product,andhas 11 patents for the production of hair brushes.
